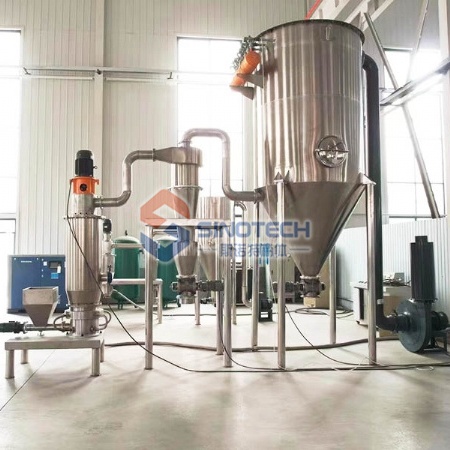

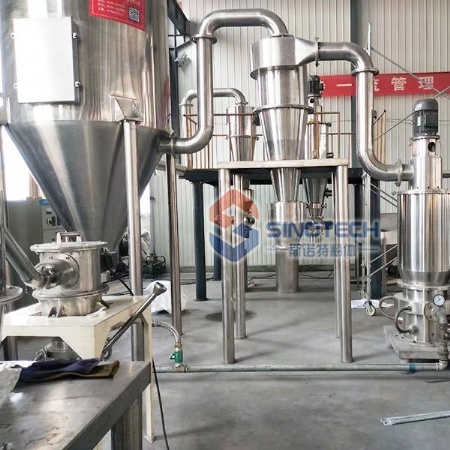

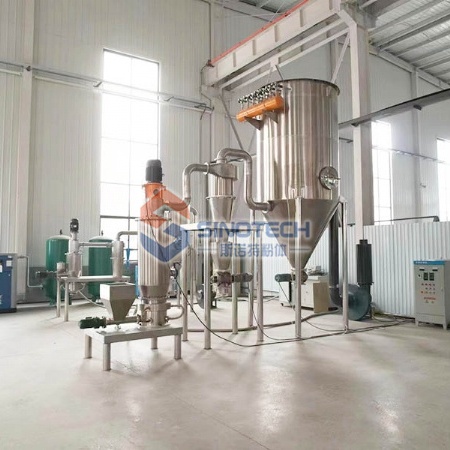

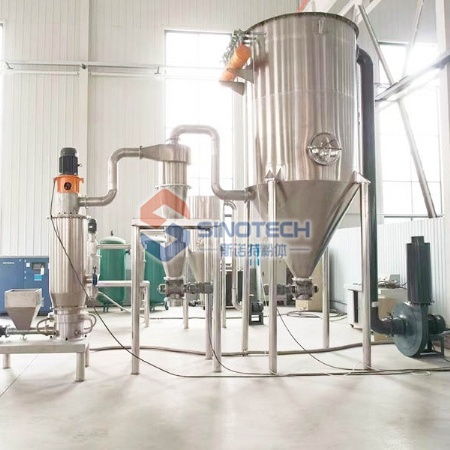

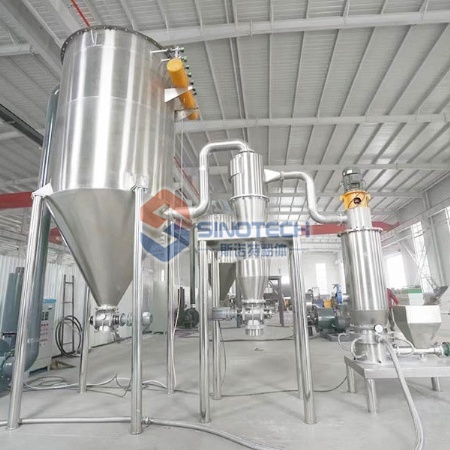

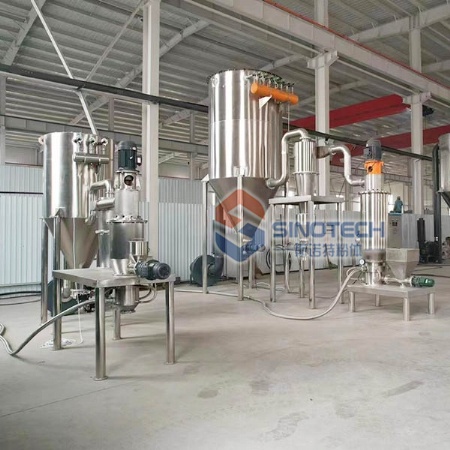

Air Jet Mill

Product Advantage

1. Ultra-Fine, Consistent Particle Size (D97: 1–10 μm)

Our jet mill delivers highly uniform ultra-fine powders through high-velocity particle–particle collision, achieving D97 ranges from 1–10 microns depending on material characteristics. Unlike mechanical grinding, the process generates minimal heat and no metal contamination, ensuring high-purity results. This makes the jet mill ideal for pharmaceuticals, specialty chemicals, and advanced materials requiring strict particle size control and consistent batch-to-batch stability.

2. Zero Mechanical Contact – High Purity & Low Contamination

Because the jet mill uses only compressed air or inert gas for pulverizing, there is no direct contact between grinding tools and materials. This “no-wear grinding” principle greatly reduces contamination, maintains material integrity, and extends equipment lifespan. It is especially suitable for processing high-value, high-purity powders such as API ingredients, battery materials, ceramic powders, and food additives.

3. Excellent Performance for Heat-Sensitive Materials

Air jet milling eliminates frictional heat, keeping processing temperatures extremely low—often below 45°C, even during continuous operation. As a result, the jet mill can handle thermally unstable or volatile materials including certain pharmaceuticals, plant extracts, organic pigments, and polymers. The stable, low-temperature environment ensures consistent quality, improved flowability, and preservation of active components.

4. Precise Particle Size Control with Integrated Air Classifier

The built-in high-precision air classifier enables adjustable and repeatable particle size control. By fine-tuning classifier speed and air flow, the system produces narrow particle size distributions with excellent efficiency. Users can achieve sharp cut-point control for ultrafine grinding, maximizing yield while minimizing oversized particles. This makes the jet mill a preferred solution for industries requiring tight PSD control and high repeatability.

5. Energy-Efficient Operation with Optimized Airflow Design

Our jet mill adopts an advanced fluid dynamics design that reduces energy loss and optimizes collision efficiency. The efficient nozzle arrangement and internal flow field increase grinding performance by up to 15–25% compared to traditional jet mills. Lower air consumption and stable operation deliver reduced operating costs, making the system suitable for large-scale, continuous powder processing.

6. Modular Design & Easy Integration into Production Lines

Designed for modern industrial automation, the jet mill offers modular configuration options including closed-loop nitrogen systems, precision feeding units, intelligent control panels, and dust-free collection modules. It can be integrated seamlessly into existing powder-processing lines, supporting GMP, FDA, and ISO compliance. The system’s flexibility enables rapid adaptation to multiple materials and production requirements.

Technical Parameters

Application Scenarios of Jet Mill

1. Pharmaceuticals & Active Ingredients (API)

Jet mills are widely used in pharmaceutical manufacturing to produce highly pure, ultra-fine powders with precise particle size control. They are ideal for APIs, antibiotics, inhalation-grade powders, and controlled-release formulations. The low-temperature, no-contamination process protects molecular activity and ensures dosage consistency, bioavailability, and regulatory compliance under GMP production environments.

2. Chemical Materials & Specialty Additives

In the chemical industry, jet mills efficiently micronize flame retardants, catalysts, resins, pigments, silica, and other specialty additives that require narrow particle distributions. Their high-purity, high-efficiency grinding mechanism ensures stable performance, enhances dispersion, and improves chemical reaction rates. The system is especially beneficial for processing materials that are abrasive, brittle, or sensitive to mechanical heat.

3. Battery Materials & New Energy Applications

Jet mills are essential for producing ultra-fine cathode and anode materials such as lithium iron phosphate (LFP), NCM, graphite, and conductive additives. The precise PSD control helps improve conductivity, energy density, and cycle performance of batteries. The contamination-free operation ensures material purity, which is critical for next-generation energy storage systems and high-performance lithium-ion batteries.

4. Food, Herbs & Natural Extracts

Jet mills are well-suited for grinding heat-sensitive foods, spices, plant extracts, herbal ingredients, and nutraceutical powders. The low-temperature environment preserves aroma, color, active components, and volatile compounds. This enables the production of fine powders used in instant beverages, functional foods, herbal medicine, and encapsulation applications that require uniformity and purity.

5. Minerals, Ceramics & Inorganic Materials

Jet mills are used to process high-hardness and high-purity inorganic materials such as alumina, quartz, kaolin, zirconia, and ceramic powders. The system produces ultra-fine, uniform particles essential for advanced ceramics, coatings, polishing materials, and new material composites. The non-contact grinding method prevents metal contamination and ensures high-quality end products.

6. Pigments, Coatings & Printing Inks

For pigments, dyes, fillers, and specialty coating materials, jet milling enhances color strength, dispersion quality, and covering power. The precise particle reduction ensures stable formulation performance and prevents agglomeration. It is widely used in industries such as automotive coatings, plastics, inks, and high-performance color masterbatch production.

How to Operate a Jet Mill

To operate the jet mill, first ensure all pipelines, filters, and valves are correctly connected and the system is clean. Start the air compressor and adjust the pressure to the recommended level. Gradually feed material into the mill while monitoring airflow, particle size, and system stability. Avoid overfeeding to ensure consistent micronizing performance. After processing, stop material feeding, let the chamber purge, and shut down the system in reverse order. Regularly clean filters and inspect wear parts to maintain optimal efficiency.
